Mix the stereo line
level outputs from up to four audio players into a single audio
The Dream Mixer - Passive Edition is ever so handy
for designing and engineering more versatile audio system applications.
You can mix up to four individually cue'd sounds/players, into
a single amp/speaker system.
Our first application of the passive mixer mixed the
sounds of log dumps (synchronized with actual log dumps from
log disconnect cars into a real water log pond!) with the uninterrupted
sounds of a saw mill, in the same audio system. A facia push
button cues the log dump animation and a Dream Player LITE in
RandomMode that picks from four log dump files. The individual
log dumps are mixed with the ongoing saw mill soundtracks...
day or night:).
The mixers are the perfect affordable way to achieve
polyphony into a single scene. The mixers mix any stereo line
level outputs (from any players).
Typical Wiring Diagram

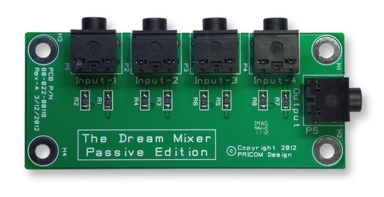

The Dream Mixer - Passive Edition (DM-PE)
1 Dream Mixer - Passive Edition & Quick Start Guide
